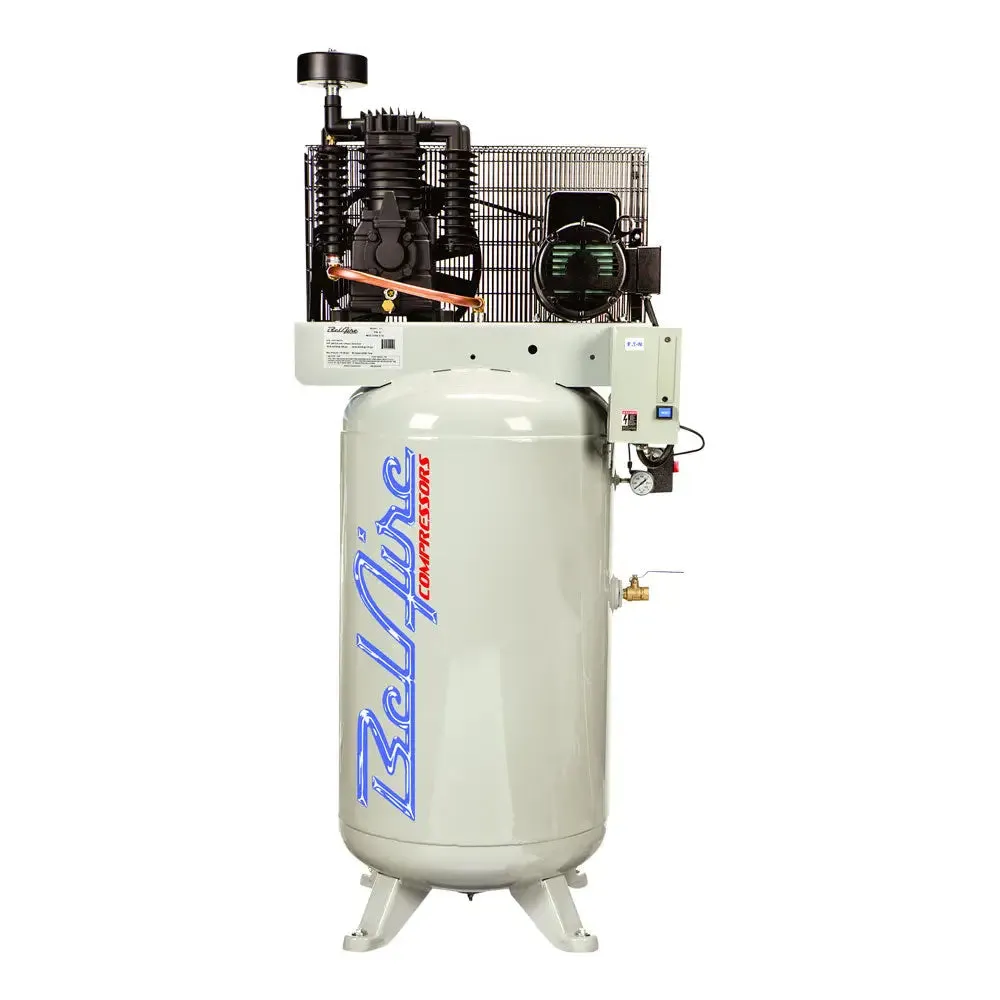

The BelAire two stage electric compressor packages are available from 5 to 10HP (Iron Series), delivering15.3 to 35 CFM at 100psi. Each compressor comes complete with everything you need to optimize your work and minimize down time. All BelAire Two Stage compressors come with a full 2 Year Warranty (including valves).
"E" designates "elite series" models: Magnetic Starter. Low Oil Switch and Automatic Tank Drain. 5 - 7.5 HP “ELITE” include triple-pass Pump Mounted Aftercooler
- Solid Cast Iron Cylinder
- Start-Stop Pressure Switch Control ASME Code Tank and Safety Valves Fully Enclosed High Flow Belt Guard
- *Voltage Specific Magnetic Starter Required
- Oil Level Sight Glass
- 100% Factory Tested at Full Pressure Tri-Voltage Motors
- 2 Year Bumper to Bumper Warranty
- All “Elite Series” Compressors include Magnetic Starter, Low Oil Switch, Automatic Tank Drain. 5 & 7.5 HP Models
- Include Triple Pass Pump Mounted Aftercooler - 10 HP Models Include Belt Guard Aftercooler.
Specs:
Model: 338VL4
Part #: 8090250034
HP: 7.5
Voltage/ Phase: 460/3
Tank (Gal): 80V
ACFM @ 100 psi: 25.25
ACFM @ 175 psi: 22.28
Max Pressure: 175 psi
Dim. In. L X W x H: 39 x 24 x 77
Shipping Weight: 467 lbs
